Working With Models

The Showcase Bundle SDK supports loading dae, fbx, obj and gltf scene and model assets. Internally, we use the three.js asset loaders. The loader components download and instantiate the models within the matterport scene. We will be using async/await instead of promises in the following examples.

Select a model

The following is a list of urls that you can use for this tutorial.

Type	Component	Scale	URL
gltf binary	GLTF_LOADER	0.01	Duck.glb
gltf	GLTF_LOADER	0.01	CesiumMan.gltf
obj	OBJ_LOADER	0.01	female02.obj (.mtl)
dae	DAE_LOADER	0.3	stormtrooper.dae
fbx	FBX_LOADER	0.00002	stanford-bunny.fbx

Setup your scene

Add some lights to your scene, otherwise, your models will be black. We provide a basic lighting component.

Start after https://github.com/matterport/showcase-sdk-tutorial/blob/master/src/index.ts#L25

const [ sceneObject ] = await sdk.Scene.createObjects(1);
const lights = sceneObject.addNode();
lights.addComponent('mp.lights');
lights.start();

Add your component to the scene node

The component type will depend on the model you choose. We will use the stanford bunny.

const modelNode = sceneObject.addNode();

// Store the fbx component since we will need to adjust it in the next step.
const fbxComponent = modelNode.addComponent(sdk.Scene.Component.FBX_LOADER, {
  url: 'https://cdn.jsdelivr.net/gh/mrdoob/three.js@dev/examples/models/fbx/stanford-bunny.fbx',
});

Scale your model

Some models aren't calibrated to real world units so you may have to adjust the model to be a more realistic size. We provide an adjustable position, rotation and scale for each model instance. See the inputs property for FbxLoader.

fbxComponent.inputs.localScale = {
  x: 0.00002,
  y: 0.00002,
  z: 0.00002
};

Position your model within view

We will lower the scene node a bit. The default position is 0, 0, 0

modelNode.position.set(0,-1,0); // drop ~3 feet

Start it

See SDK Architecture - Scene Nodes for an explanation of what happens when you start a scene node.

modelNode.start();

Animate it

We would like to see all sides of the model so we will rotate the bunny around the Y axis.

const axis = new THREE.Vector3(0, 1, 0);
const tick = function() {
  requestAnimationFrame(tick);
  modelNode.quaternion.multiply(
    new THREE.Quaternion().setFromAxisAngle(axis, 0.02)
  );
}
tick();

Launch your browser

Launch http://localhost:8000/

You may see a delay at startup since the showcase tries to preload geometry and textures.

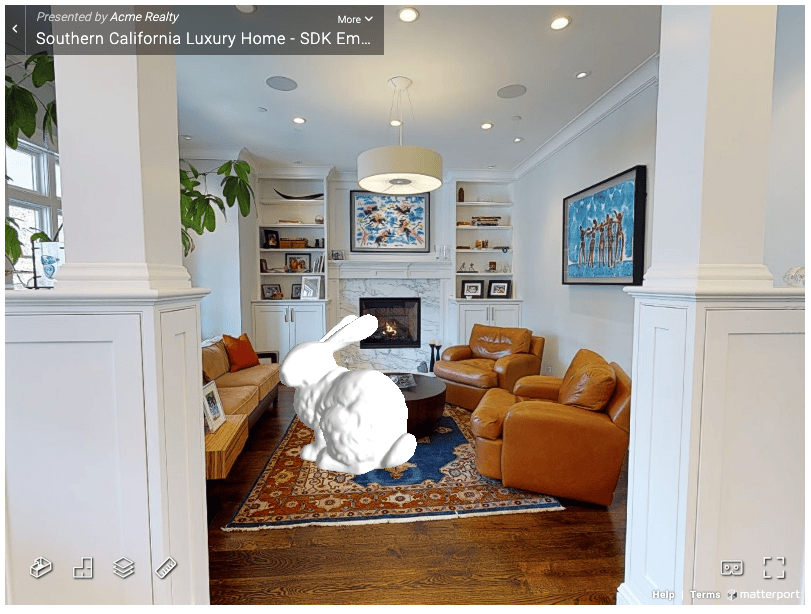

Rotating Bunny
